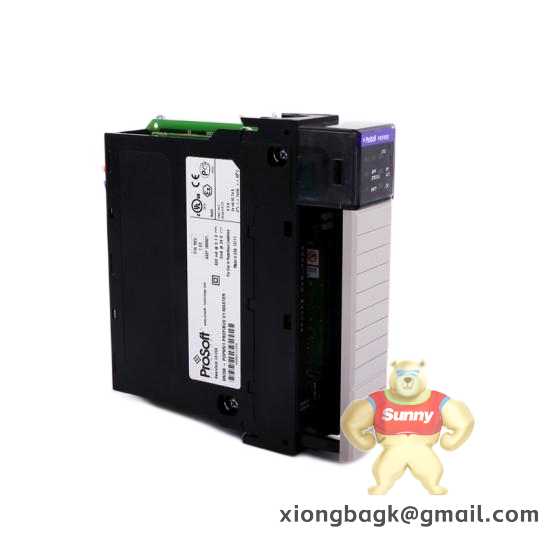

Prosoft MVI69E-MBS Modbus TCP/IP Communication Module
The Prosoft MVI69E-MBS Communication Module enables seamless integration of Modbus devices with Allen-Bradley CompactLogix and MicroLogix controllers. It supports up to 16-bit integer I/O data sizes and various communication protocols, making it ideal for industrial automation applications.
I/O Size:0/120/240 – 16 bit integers
Communication Parameters:{“Baud Rate”:”110 to 115K baud”,”Stop Bits”:”1 or 2″,”Data Size”:”7 or 8 Bits”,”Parity”:”None, Even, Odd”,”RTS Timing Delays”:”0 to 65535 milliseconds”}
Floating Point Data Movement:Supported, including configurable support for Enron, Daniel® and other implementations
The Prosoft MVI69E-MBS Communication Module offers high-speed data transfer between the module and CompactLogix/MicroLogix processors. It installs as a Generic 1769 module, with sample ladder logic included, facilitating easy setup and configuration.
This advanced communication module allows for seamless integration into the CompactLogix system, thanks to its Add-on Instruction feature which creates UDTs for logical definitions of I/O, status, and control data.
Users can benefit from improved system diagnostics and decision-making capabilities through the availability of diagnostic data in RSLogix 5000 controller tags, which monitor the health of nodes within the system.
Designed with a robust architecture, this module is capable of supporting various floating-point data movements, including configurable support for Enron, Daniel®, and other industry-specific implementations, making it versatile for a wide range of applications.
With its user-friendly design and comprehensive support documentation, the Prosoft MVI69E-MBS Communication Module stands out as an essential tool for any professional looking to enhance their industrial automation processes.
