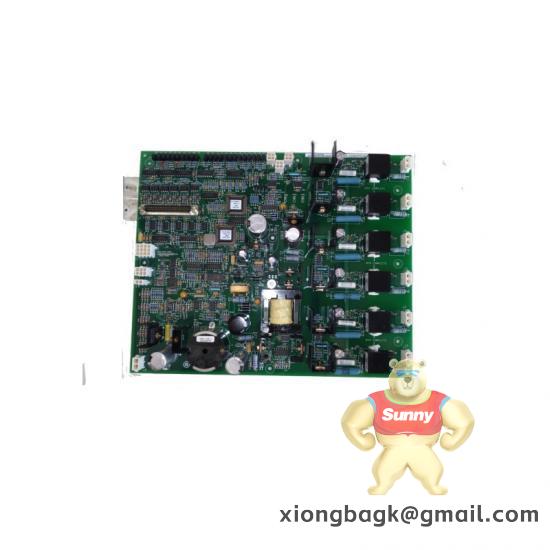

GE IS200EGPAG1BEC Gate Pulse Amplifier for EX2100 Excitation Control
The IS200EGPAG1BEC is an advanced Gate Pulse Amplifier designed for the EX2100 Excitation Control series by GE Industrial Systems. This amplifier board facilitates control over power bridges and manages gate pulse signals to SCR devices. It plays a critical role in ensuring efficient operation and reliability in industrial automation systems.
Board Type:Gate Pulse Amplifier Board
Configurable Hardware:5 On-board Jumpers
Discontinued/Obsolete/Legacy:Yes, contact AX Control for available surplus
Function Interface:Control to Power Bridge
Acronym:EGPA
Instruction Manual Number:GEI-100461 (GEH-6632 Series Manual)
Notable Components:On-board Green and Red LED Indicators
OEM / Manufacturer:General Electric, GE Industrial Systems
Repairable:Yes
Series / Product Line:EX2100 Excitation Control – Exciter System
Weight:1lb 9oz
The IS200EGPAG1BEC is a high-performance Gate Pulse Amplifier designed specifically for use in the EX2100 Excitation Control Series. Its primary function is to amplify gate pulses which are crucial for controlling the power bridge within industrial systems.
This board includes on-board green and red LED indicators for status monitoring. With five on-board jumpers, it offers configurability options that enhance its utility across different industrial applications.
The IS200EGPAG1BEC is meticulously engineered to interface with conduction feedback mechanisms, alongside temperature and airflow monitoring systems, ensuring reliable performance under varying conditions.
Manufactured by General Electric, this component has been utilized in various high-stress environments, proving its durability and reliability. It is ideal for engineers and technicians seeking robust solutions for their excitation control needs.
Despite being discontinued, AX Control maintains a supply of surplus units for those who need them. For inquiries or purchases, please contact us directly.
