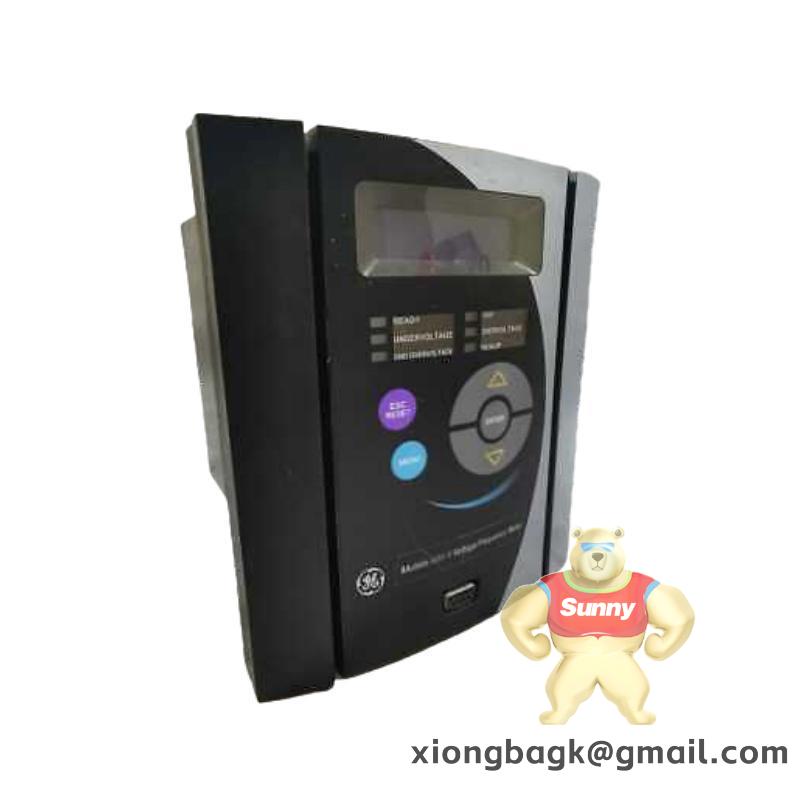

GE 369-HI-R-M-F-E-H-E Motor Management Relay with Enhanced Diagnostics

GE 369-HI-R-M-F-E-H-E Motor Management Relay with Enhanced Diagnostics

    The GE 369-HI-R-M-F-E-H-E is a high-performance motor management relay designed for industrial control applications. It provides advanced protection and monitoring features for three-phase motors and their systems.

Control Power Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz

Digital/Switch Inputs:6 optically isolated

Recordable Events:512

Fuse:3.15 A H 250 V

Ground Current Input Frequency:20 to 100 Hz

Maximum Altitude:2000 m (max)

Phase Current Inputs:1 A and 5 A secondary

RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel,10 Ω copper

Dimensions:Approximately 29.6cm H x 10.7cm W x 20.5cm L

Weight:Approximately 10 lbs

Software:EnerVista 369

    The GE 369-HI-R-M-F-E-H-E Motor Management Relay is engineered for high-reliability industrial environments. Featuring a wide range of control power options, this relay supports up to 265 VAC or 300 VDC, making it versatile for various applications. With six optically isolated digital inputs, it provides reliable signal processing without interference. The relay comes equipped with an advanced metering package, enabling precise monitoring of motor performance. Additionally, it supports RTD (Resistance Temperature Detector) inputs for accurate temperature measurement, crucial for motor health monitoring. The built-in fiber optic port allows for secure data transmission over long distances, ideal for harsh environments. Enhanced diagnostics provide real-time insights into motor operations, helping prevent failures before they occur. Its sturdy design ensures durability even in challenging industrial settings.
