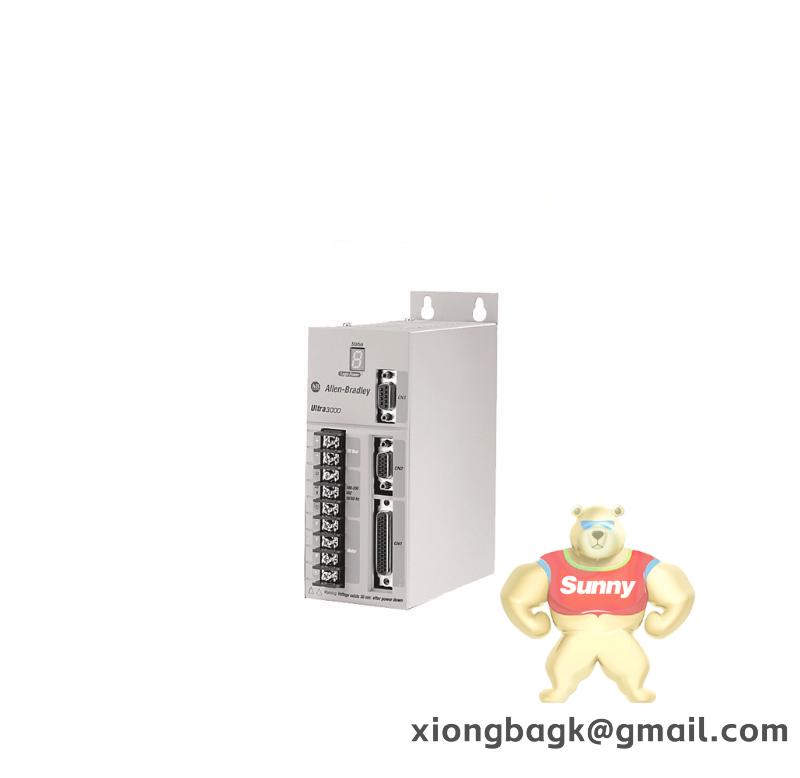

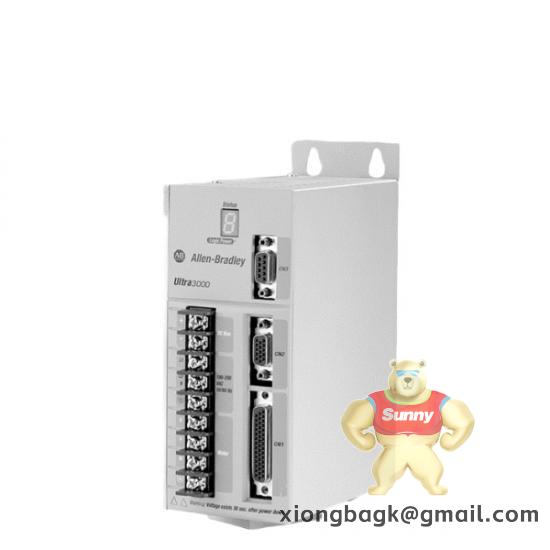

Allen-Bradley 2098-DSD-020X Ultra 3000 Digital Servo Drive

Allen-Bradley 2098-DSD-020X Ultra 3000 Digital Servo Drive

    The Allen-Bradley 2098-DSD-020X is a versatile digital servo drive from the Ultra 3000 series, designed for straightforward motion control applications. It supports simple indexing and preconfigured motions, making it ideal for multi-axis systems in various industrial environments.

Model:2098-DSD-020X

Series:Ultra 3000

Drive Type:Digital Servo Drive

Power Rating:2kW

Input Voltage Range:100-240VAC rms

Input Frequency Range:47-63 Hz

Nominal Input Current:18 Amps

Output Voltage Range:100-240VAC

Output Frequency Range:0-400 Hz

Continuous Output Power:1kW

Continuous Output Current:1A

Intermittent Output Current:30A

Bus Overvoltage:400 Volts dc

Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)

Weight:Not specified in the provided documents.

    The Allen-Bradley 2098-DSD-020X Digital Servo Drive is a standard drive designed for efficient motion control in industrial settings. It operates within a wide range of input voltages (120-240VAC rms, 1-Phase) and currents (18 Amps), ensuring reliability across diverse applications. Its robust design features a compact form factor (7.8 x 5.68 x 3.89 in) that fits seamlessly into existing systems. The drive is engineered to handle high-frequency operations (47-63 Hz) and offers a continuous output power of 1kW, making it suitable for demanding tasks. It also boasts an overvoltage protection feature up to 400 Volts dc, safeguarding your equipment from potential surges. With precise positioning capabilities, this drive integrates seamlessly with Allen-Bradley’s Kinetix Servo Motor series, enabling accurate motion and position control. Whether you’re implementing simple indexing or multi-axis motion control, the 2098-DSD-020X delivers exceptional performance and reliability.
