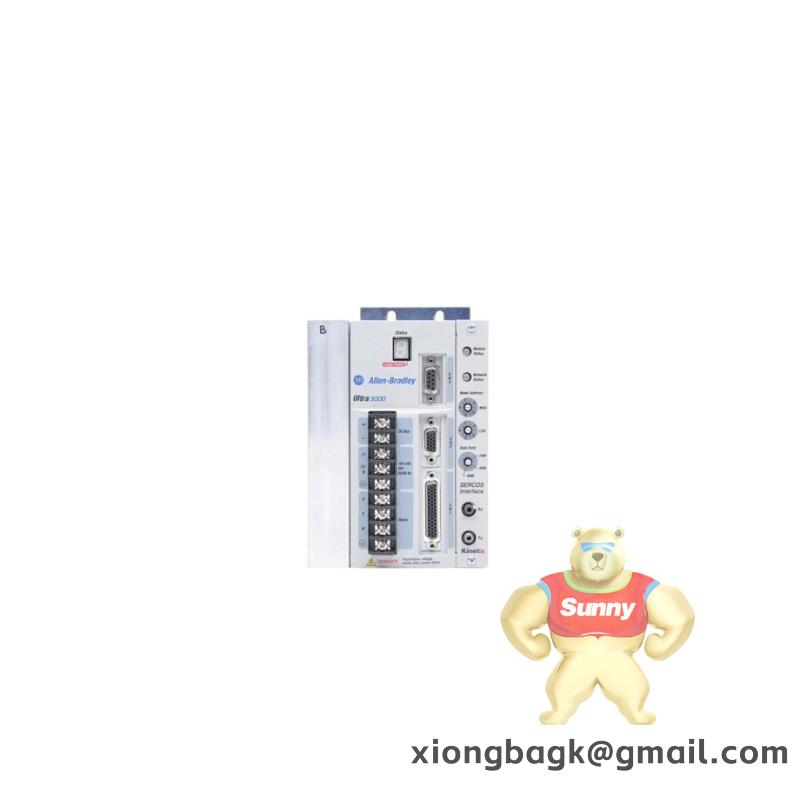

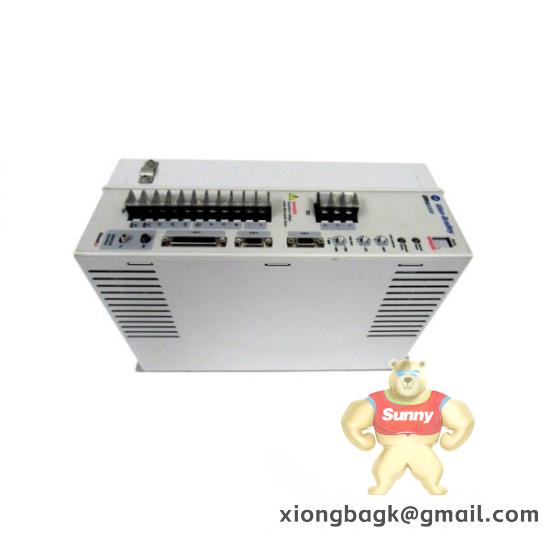

A-B 2098-DSD-HV050 Ultra 3000i Digital Servo Drive for High-Performance Motion Control
This ultra-efficient digital servo drive is designed to optimize the performance of industrial machinery by providing precise control over motor operations. Ideal for applications requiring high precision and reliability.
Brand:Allen-Bradley
Series:2098
Output Current (Intermittent):22 Amps (0-peak)
Output Current (Continuous):11 Amps (0-peak)
Input Voltage:230…480V rms, 3-Phase
Auxiliary Power Supply:Yes
Nominal Input Current (AC):7 Amps
Root Means Square Input Frequency (AC):47-63 Hz
Three-phase Input Voltage (AC):230…480V rms
Bus Overvoltage:810V dc
Shunt On:800V dc
Dimensions:9.54 x 14.2 x 5.46 in (242.2 x 360.7 x 138.7 mm)
The 2098-DSD-HV050 Ultra 3000i Digital Servo Drive is specifically engineered for demanding industrial applications where precision and reliability are paramount.
This servo drive offers an intermittent output current of 22 Amps, ensuring robust performance even under peak load conditions.
With a continuous output current of 11 Amps, it delivers consistent power for long-term operations.
It supports a wide input voltage range of 230…480V rms, making it highly adaptable to various industrial power supplies.
The drive features an auxiliary power supply, providing additional flexibility for integration into complex systems.
The dimensions of the drive are conveniently compact at 9.54 x 14.2 x 5.46 inches, making it easy to integrate into existing machinery without significant modifications.
